| Size | OD(mm) | Thickness (mm) |
|---|---|---|
| 2" | 60.3 | 4 |
| 2 1/2" | 73 | 5.1 |
| 3" | 89 | 5.2-5.5 |
| 4" | 114.3 | 5.5 |
| 5" | 140 | 6 |
| 6" | 168 | 6 |
| 8" | 219 | 8.18 |
| 10" | 273 | 8.8 |
| 12" | 323 | 9.2 |
| Size | OD(mm) | ID(mm) | Length (mm) |
|---|---|---|---|
| 2" | 73 | 65 | 89 |
| 2" | 76 | 69 | 89 |
| 2 1/2" | 89 | 82 | 89 |
| 3" | 101.6 | 94.5 | 118 |
| 3" | 105 | 98 | 118 |
| 3" | 111.5 | 102 | 118 |
| 3" | 111.5 | 104 | 118 |
| 4" | 130 | 122.5 | 125 |
| 4" | 131 | 121 | 125 |
| 4" | 133 | 123 | 125 |
| 4" | 137 | 127 | 125 |
| 5" | 162 | 152 | 155 |
| 5" | 168 | 157 | 155 |
| 6" | 180 | 171 | 160 |
| 6" | 185 | 174 | 160 |
| 6" | 190 | 179 | 160 |
| 6" | 193 | 182 | 160 |
| 8" | 267 | 256 | 208 |
| 10" | 318 | 307 | 208 |
| 12" | 355.6 | 244.5 | 277 |

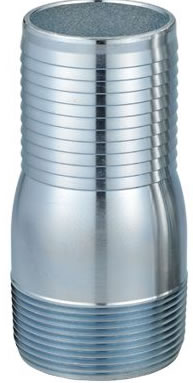

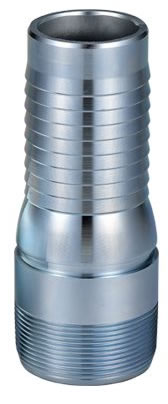

KC Nipple
Material :
Steel Plated, SS316, SS304,
Aluminum, or Brass
Size :
1/2" to 12"

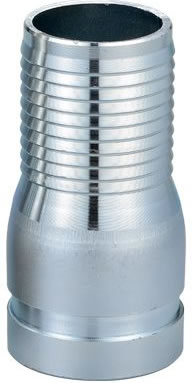

Groove KC Nipple
Material :
Steel Plated, SS316, or SS304
Size :
1/2" to 12"

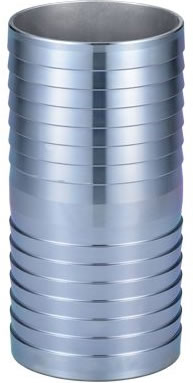

Hose Mender
Material :
Steel Plated, SS316, SS304,
Aluminum, or Brass
Size :
1/2" to 12"
Ferrule for Crimpnology Nipple
Material :
Steel Plated or SS304
Size :
1/2" to 6"
Customized Ferrule is available
Light Duty Ferrule
Material :
Steel Plated,SS304, or Aluminum
Size :
1" to 8"
Customized Ferrule is available
