A.S. |

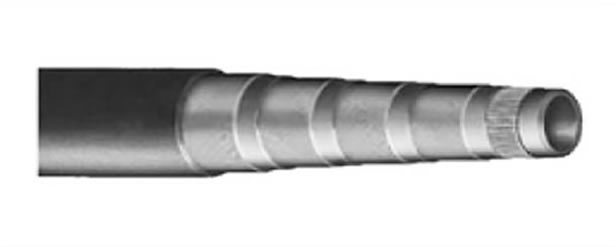

EN 856 4SP/ISO 3862-1 4SP |
T |
Black Oil Resistant Synthetic Rubber |
R |
Four High Tensile Steel Wire Braid |
C |
Black Oil & Weather Resistant Synthetic Rubber |
T.R |
-40°C ~ 100°C (Continuous Service), 125°C (Max Operating Temp.) |
* A.S - Applicable Spec., T - Tube , R - Reinforcement, C - Cover, T.P - Temperature Range.
| SIZE (I, D) | O.D. | W.P. | B.P. | Bend Radius | Weight | |
|---|---|---|---|---|---|---|
| inch | mm | mm | bar | bar | mm | kg/m |
| ½” | 12.7 | 24.6 | 425 | 1, 700 | 230 | 0.93 |
| ⅝” | 15.9 | 28.2 | 400 | 1, 600 | 250 | 1.05 |
| ¾” | 19.0 | 31.8 | 350 | 1, 400 | 170 | 1.15 |
| 1” | 25.4 | 38.7 | 280 | 1, 120 | 340 | 1.90 |
| 1-¼” | 31.8 | 49.5 | 210 | 840 | 460 | 3.03 |
| 1-½” | 38.1 | 56.2 | 185 | 740 | 560 | 3.64 |
| 2” | 50.8 | 70.1 | 165 | 660 | 660 | 5.32 |
